Type 950 Nano Microporous Insulation Board

Lightweight. inoroanic silica and ceramic fibers with low thermal conductivity are used as raw materials. and aluminum foil with high reflectivity is used as the underlying material.

Keywords:

950 Nano Microporous Insulation Board

XINGDE SILICON CARBIDE

Categorization

Nano Microporous Insulation Board

E-mail:

sales@sdntw.com

Inquriy

Details

[Product descoriotion]

Lightweight. inoroanic silica and ceramic fibers with low thermal conductivity are used as raw materials. and aluminum foil with high reflectivity is used as the underlying material. The single-laver composite structure is formed by continuous coatin and composite pressing process, and its thermal conductivity is higher than that of static The air is smaller, and the thermal insulation performance is about 3 to 5 times better than that of traditional thermal insulation materials. It is the best thermal insulation material so far.

Nano thermal insulation board has ultra-low thermal conductivity, which can greatly save energy compared with the use of traditional thermal insulation materials.

[Typical application]

Ladle, ladle, tundish, converter, torpedo, fumace door, furnace cover, engine heat shield, power battery fire and heat insulation.

Different packaging methods are used, such as bare board/POF heat shrinkable film/aluminum foil paper, etc., to meet the application needs in diferent fields. At the same time, in the process of preparation of this material, no adhesive ingredients are used, and the materials used are fully in line with various types of materials. Environmental requirements.

[Product Features and Functions]

High temperature resistance

Long-term use temperature of about 400 to 1000 degrees.

Thermal conductivity

2 to 10 times lower than conventional thermal insulation materials, only 0.035w/m.k at 800 degrees.

Durability

Can be used as a permanent layer of thermal insulation, witha service life of more than 5 to 10 years.

Safety and environmental protection

pure non-polar material combination, good thermal stability,no release of any harmful substances.

Economic Analysis

The price is lower than 50% of similar foreign products, andthe energy saving is 10-30% compared with conventional materials.

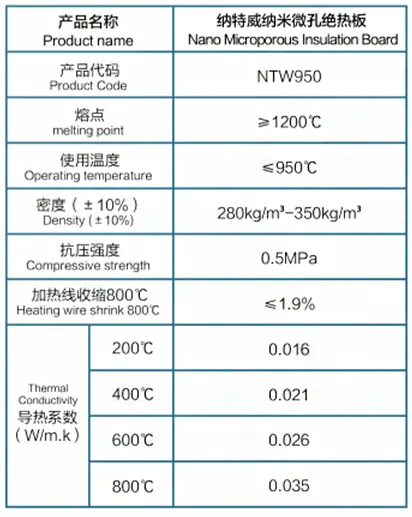

Product parameters
